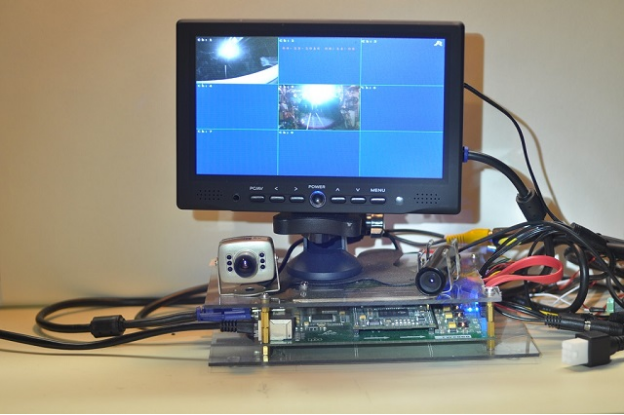

8CH H264 NVR solution for HI3515 (product prototype)
Specification:
| Product Category |
8 Channel NVR | |
| System | OS | Embedded Linux (kernel 2.6) |
| MCU | Huawei HI3515 | |
| A/V codec chip | TW2868 | |
Video |
Input | 8 channel |
| Output | 1*BNC 1*VGA(Preview), 8 channel (encoded) | |
| Compression Format | H.264/MJPEG/JPEG | |
Audio |
Input | 2 ( support to 4 channels) |
| Output | 2 ， AAC/PCM etc | |
| Recording | Resolution | NTSC: D1(704*480); CIF(352*240)PAL: D1(704*576), CIF(352*288) |
| Record mode | Schedule, Manual, Motion, Sensor | |
| File format | MP4 (H264+AAC); AVI (MJEG) | |
| PTZ | PTZ | 1*RS485 port, support ELCO-P, PELCO-D Protocol |
| PTZ Control | Pan tilt, zoom, preset, cruise, trace | |
| Network | Ethernet | 10/100 Mbps Ethernet (RJ-45) |
| Protocol | TCP/IP (HTTP), Websockets,RTSP/RTP, NTP,SNMP, SSL/TLS,FTP | |
| Live Streaming | WebSockets | MJPEG video |
| RTSP/RTP | Support 8 RTSP sessions: CH1 (H264+AAC) ,CH2-7: H264 video only |
|

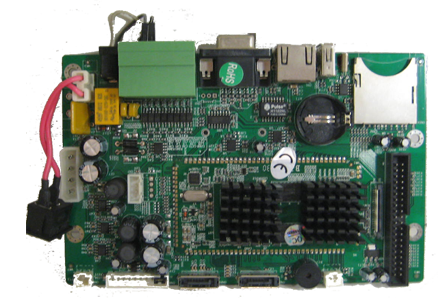

HI3515-TW2868:
HI3515+ TW2868 support maximum 8 Video /Audio inputs. Audio inputs support 16K, 32K, 44.1K and 48K sampling rates.
TW2868 device driver was released under GNU licence on 03/13/2015.
4/8 Channel NVR User Manual (pdf 09/12/2016):
